12 fibers Fiber optic termination box
PC+ABS 340×220×95 mm 24 Cores Fiber Optic Joint / Access Termination Closure

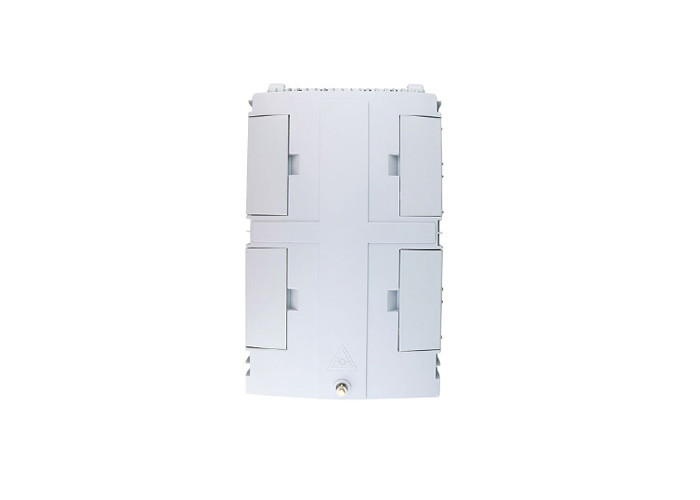

12 fibers Fiber optic termination box enclosure pc +abs with sc pigtails
fiber access termination closure can accommodate up to 12 subscribers and 96 splicing points. It serves as both a splicing closure and a termination point for connecting the feeder cable to the drop cable in an FTTX network system. This unit integrates fiber splicing, splitting, distribution, storage, and cable connections into a single, durable protective enclosure
This Fiber optic terminal box is is able to hold up to 12 subscribers. 1pcs 1:8 SC mini splitter also called micro steel tube splitter and 12pcs pigtails with SC connectors are applicable , and it also can be installed with 12pcs LC double cores adapters (24cores) or 12pcs simplex adapters (12cores)
Data Center
FTTH
Telecom
Key Benefits
1. Combines splicing
splitting, and distribution in a single enclosure, simplifying FTTX access deployment.
2. IP65 protection
and controlled bend radius help ensure long-term optical performance in harsh environments.
3. Flexible configuration
with PLC splitter options and 24 adapter positions supports up to 16 subscribers and scalable network growth.
4. Mechanical sealing
and mid-span entry enable reliable cable management with reduced installation time and maintenance effort.
Features
- IP65 waterproof design for outdoor and indoor FTTX applications.

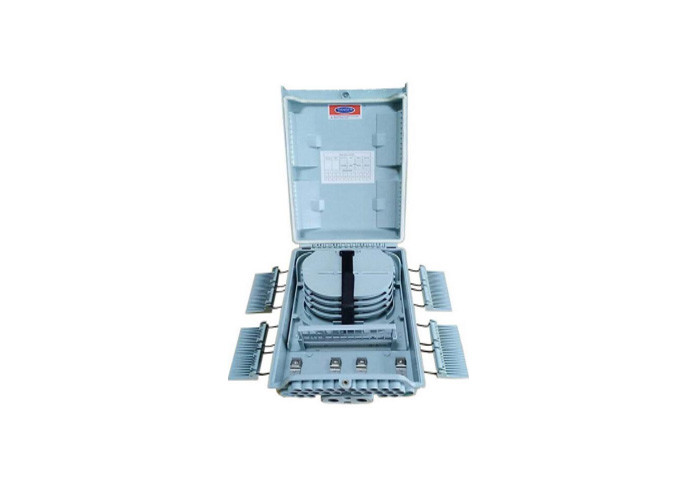

- Integrated flap-up splice cassette and adaptor holder.
- All stainless metal plate with anti-rust bolts and nuts.
- Fiber bend radius control greater than 40 mm.
- Suitable for fusion splicing and mechanical splice.
- Space for 3 pcs of 1×8 PLC splitters as an option.
- Mechanical sealing structure with mid-span cable entry.

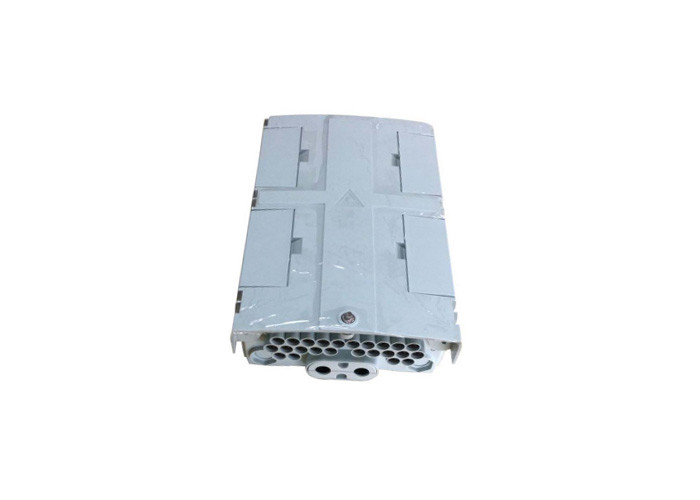

- 24 ports for drop cable entrance and 24 adapters for drop cable patching.
- Supports wall mounting and pole mounting installation.
- Compatible with 2×3 mm indoor FTTH drop cable and outdoor figure-8 self-supporting FTTH drop cable.
Certifications / compliance information
- Material: PC+ABS housing.
- Size: 340×220×95 mm (A×B×C).
- Max capacity: 96 fiber splices (4 trays, 24 fibers per tray).
- Splitter capacity: up to 3 pcs of 1×8 PLC splitters.
- Adapters: 24 pcs SC.
- Weight: 1.85 kg.
- Color options: Grey / black.
