Description

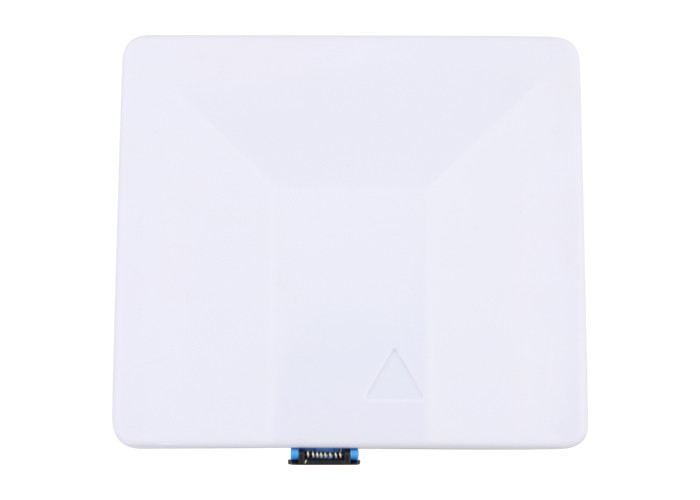

Rosette with Pre-connectorized Invisible Cable Spool Fiber Interface Wall Plates Adaptor Module
The Fiber Interface Wall Plates provide a wall module for storing the remaining fiber on the spool, pre-connectorized SC/UPC, or SC/APC on two ends of the spooled invisible cable (an integrated jumper). These wall plates allow flexibility with indoor (invisible) connections to the outside optical fibers or easy access connections to the optical network terminal.

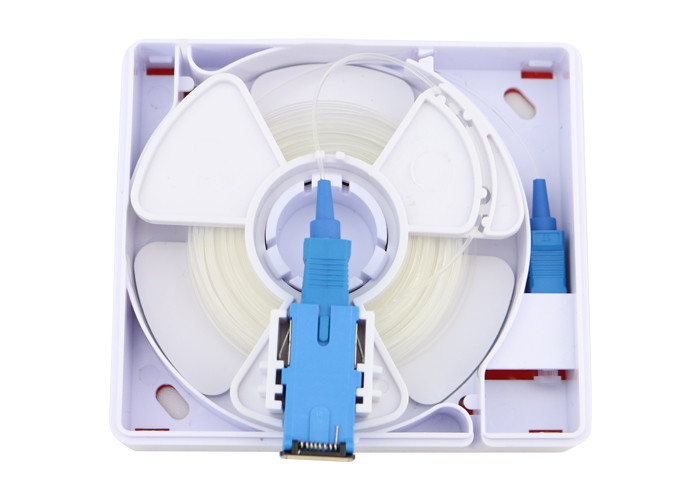

The 93×86 Wall Module is provided with an SC external shuttered adapter and an internal parking space for the SC connector end. The internal spool allows slack management of the tight buffer and jumper and can be locked in order to spool out by hand the desired length of the jumper when the cover is pressed on. The spool supports up to 40 meters of invisible 0.9mm tight buffer optical fiber. There is a port of entry at the bottom of the module. The Invisible Fiber exits on the up or downside and the patch cord is attached to the shuttered adapter in the middle of the module. The SC shuttered simplex adapter snaps into the designated adapter port with the shutter on the outside and the hinged shutter to the top of the adapter port. The shutter provides dust protection when the patch cord is not engaged.
-
Wall-mounted compact module, small size, lightweight, convenient
-
ABS material, fire retardant and dust-proof, free from heavy metals, and environmentally friendly
-
Radian appearance makes it slinky
-
Suitable for various modules and multimedia interfaces
-
The Embedded chart and logo position makes it easy to identity
-
Support MM or SM fiber connection
-
SC simplex and LC duplex adapters optional
-
Houses the compact invisible spool with SC or LC connectors factory terminated and tested
-
Allows up to 40 m of fiber storing to be dispensed and the slack management
-
Spool locking system (Integrated adapter slot and spool) to facilitate the jumper spooling out
-
FTTx solutions
-
Drop cable and indoor cable connection
-
Indoor cable storage and distribution
Specification
Model No. | PICS-SC/UPC-15 |
Outside Dimension | 93 × 86 (including adaptor) × 29mm |
Material | ABS |
Entry Port | 1pcs SC footprint flangeless |
Cable Ports | 2 out |
Mount type | Wall-mounted |
Fiber Type | G.657 A2, G.657 B3 (Optional) |
Fiber & Cable Color | Natural (Invisible) |
Tight-buffer Material | Nylon |
Cable Dia. (Max.) | Φ0.9mm |
Bending Radius (Min.) | 15D (Static) / 30D (Dynamic) |
Attenuation | ≤0.4dB/km @1310nm, ≤ 0.3dB/km @1550nm |
Cable Weight | Approx. 0.7 Kg/KM |
Connector Type | SC, LC Duplex (Optional) |
Polishing | UPC or APC |
Insertion Loss (IL) | ≤0 3dB |
Return Loss (RL) | UPC≥50dB, APC≥55dB |
Operation Temperature | -20 to +70℃ |
Item | Size | QTY | Remark |

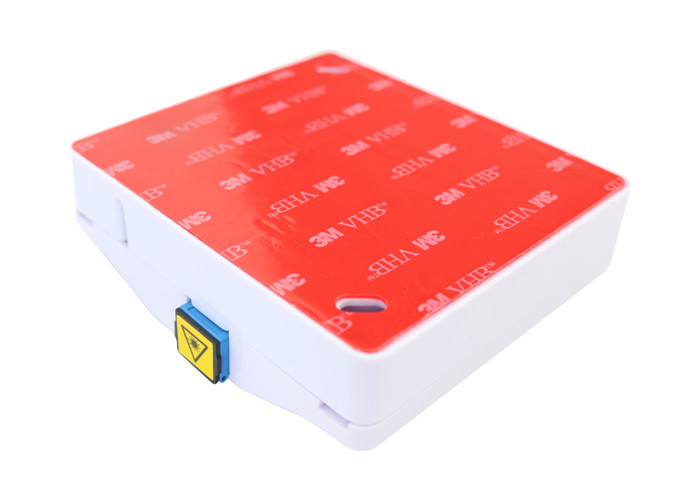

Double tape | 80x90mm | 1pcs | 3M VHBTM |
Clip Holder | 20mm | 50pcs | with Double Tape 3M VHBTM |
Metal bolt | 20*φ5mm | 2 | Wall mount kits |
Plastic expansion tubes | 20*φ5mm | 4 |
-
