Description

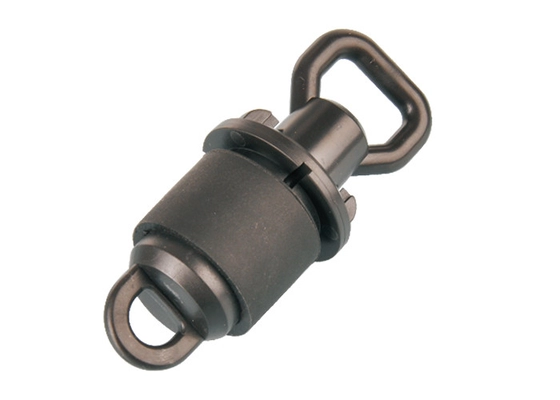

Blank Duct Plugs Sealing Devices for Ducted Cable Networks

Blank duct plugs effectively seal conduits to reduce the cost of cable placement and maintenance in new underground construction projects and routine work. These plugs are economical because they are removable and reusable.

Duct Bank Durability Manufactured from high-impact plastic components, combined with durable elastic gaskets, Blank plugs are corrosion proof and effective as long-term or temporary seals.

Economy and Safety Both water-tight and gas-tight, Blank duct plugs prevent the flow of water and the costly sedimentation of duct banks and conduit systems while confining problems of dangerous vapors to their source.

Convenience Each Blank plug is equipped with a rope tie device to allow the securing of pull rope to the plug’s back compression plate. Installers can attach the rope to the back compression plate of the plug and store excess slack rope behind the plug within the conduit system for future use.

Order Information

Specification	Duct ID Diameter Rang(mm)
Blank Duct Plug BDP20025U	20-25.5
Blank Duct Plug BDP25029U	25.5-29
Blank Duct Plug BDP31037U	31-37.5
Blank Duct Plug BDP37046U	37-46.5
Blank Duct Plug BDP46060U	46-60
Blank Duct Plug BDP59076U	59-76
Blank Duct Plug BDP76088U	76-88
Blank Duct Plug BDP88102U	88-102
Blank Duct Plug BDP99110U	99-110
